Brass hot forging
Watch a simulation video of hot forging brass

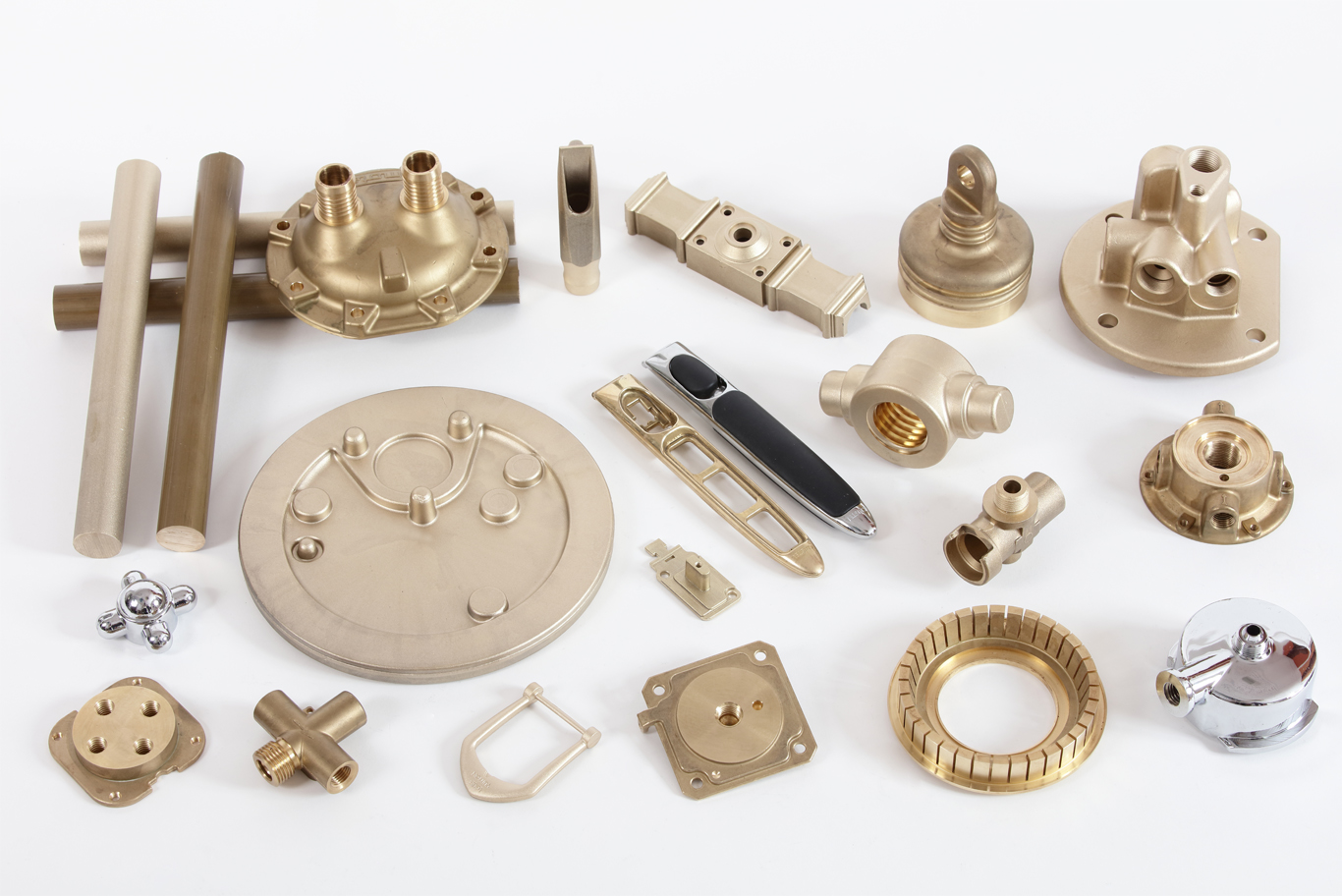

Characteristics of hot-forged Brass
- Hot-forged brass offers better mechanical characteristics than die casting
- Hot forging allows important deformations, refines the starting grain, produce a strain hardening, create a favorable linear drawing by considerably improving the mechanical characteristics
- Hot-forged brass offers the advantage of excellent material health, good surface condition, no porosity, very good waterproofing allowing an easy polishing and numerous coating like nickel plating, chrome plating, tinning, varnishing and painting.
- Brass also offers a really good corosion resistance
- Recycling brass is easy and economical, environmentally friendly
The different brass families
Standard brass with about 60% copper, Good ductility for hot forging
Used in mechanic, hydraulic, heating, distribution of water and gas
Standard family
Standard brass with about 60% copper, Good ductility for hot forging
Used in mechanic, hydraulic, heating, distribution of water and gas
HR familly
High resistance brass, exellent mechanical caracteristics for mouving pieces
Used for locks, flanges, mechanical bearings
Cupro-aluminum family
Brass with aluminium, commonly called (Aluminum bronze ?), exellent mechanical charecteristic, good friction aptitude, very good resistance to marine corrosion
| Designation according to european standard EN 12165 | Density | State | Rm N/mm² | Rp 0.2 N/mm2 | A% | HB | Electrical conductivity %IACS | Thermal conductivity W/(m.K) |
| CW304G (CuAl9Ni3Fe2) | 7.6 | H115 | 500 | 180 | 30 | 115 | 9 | 50 |
| CW307G (CuAl10Ni5Fe4) | 7.6 | (H222) | (800) | (500) | (17) | (222) | 7 | 42 |
| CW510L (CuZn42) | 8.4 | H070 | 350 | 140 | 15 | 70 | 31 | 139 |
| CW612N (CuZn39Pb2) | 8.4 | H070 | 350 | 140 | 15 | 70 | 27 | 117 |
| CW617N (CuZn40Pb2) | 8.4 | H070 | 350 | 140 | 15 | 70 | 27 | 117 |
| CW710R (CuZn35Ni3Mn2AlPb) | 8.3 | H100 | 440 | 180 | 10 | 100 | 11 | 50 |
| CW713R CuZn37Mn3Al2PbSi) | 8.2 | H130 | 550 | 200 | 8 | 130 | 23 | 64 |
| Designation according to european standard EN 12165 | B | Hot forging | Machin-abilty | Weld-ability | Polishing | Nickel plating | Tinning | Painting | Silvering | Anodising | Zink plating | Corrosion resistance | Field of application |
| CW304G (CuAl9Ni3Fe2) | B | C | D | A | A | A | A | A | A | F | A | A | Fluid connection, bushings, fittings, marine, military |
| CW307G (CuAl10Ni5Fe4) | B | C | D | A | A | A | A | A | A | F | A | A | Fluid connection, bushings, fittings, marine, military |
|
CW510L (CuZn42) |
A | B | B | A | A | A | A | A | A | F | A | BC | Luxe Industry, jewelry, leatherwork |
| CW612N (CuZn39Pb2) | A | A | B | A | A | A | A | A | A | F | A | D | Fluid connection, fittings, heating, electrical equipment |
| CW617N (CuZn40Pb2) | A | A | B | A | A | A | A | A | A | F | A | D | Fluid connection, fittings, heating, electrical equipment |
| CW710R (CuZn35Ni3Mn2AlPb) | A | B | E | A | A | A | A | A | A | F | A | C | Fluid connection, marine |
| CW713R CuZn37Mn3Al2PbSi) | A | B | E | A | A | A | A | A | A | F | A | C | Fluid connection, valves, automobile |
